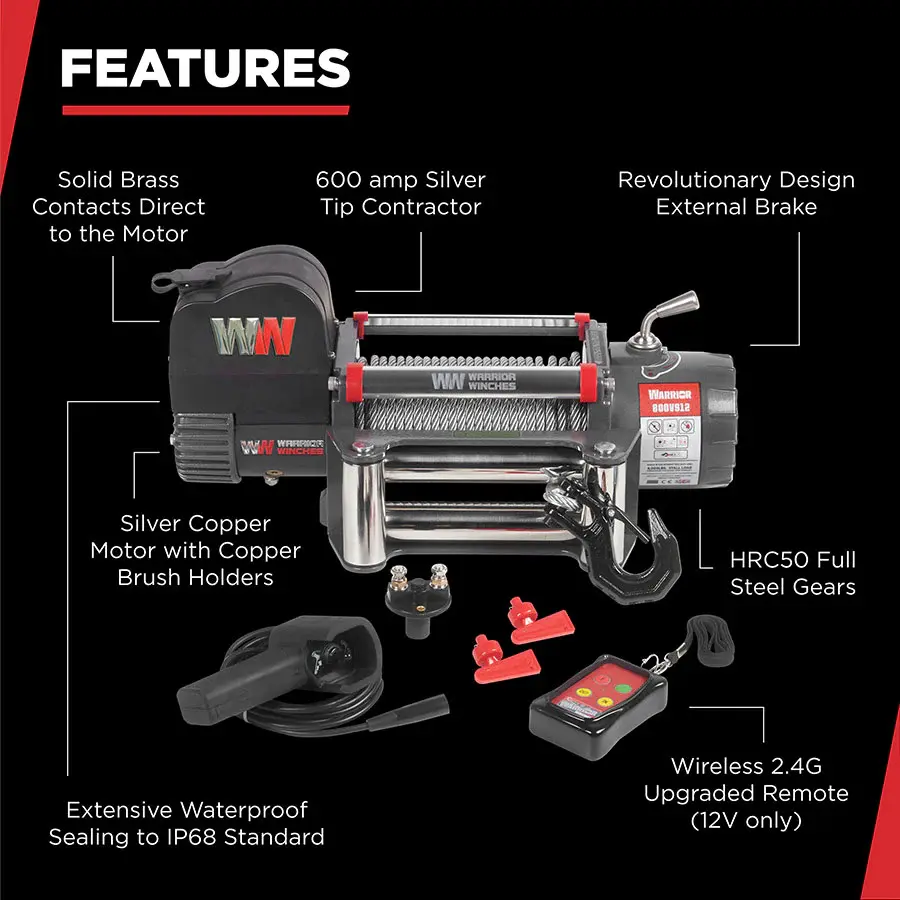

Standard Features:
♦ Line Capacity: 8,000lb (3,636kg) or 12,000lb (5,400kg)
♦ Motor: Series Wound Motor - Powers In and Out
♦ Gearbox: Freespooling Clutch - Allows cable to be unwound manually
Accessories:
♦ Wired Hand Control: 3.8m Wired Hand Control
♦ Wireless Control - 12v MODEL ONLY: Pre-Installed Heavy Duty Wireless Control with Lanyard
♦ Mounting Plate: Available as optional extra
♦ Mounting Bolts: Included for Standard installations
♦ 1.5m Heavy Duty Battery Cables (May need extending dependant on application)
♦ Battery Isolation Switch (Failure to fit will invalidate warranty)
♦ Instruction Manual
Other Information:
♦ Dimensions: 559mm L x 160mm D x 248mm H
♦ Mounting Bolt Pattern: 254mm x 114.3mm
♦ Line Pull - No Load: 8000lbs - 10.2 m/min (58 Amps) 12000lbs - 10.2 m/min (58 Amps)
♦ Line Pull - Full Load: 8000lbs - 2.5 m/min (300 Amps) 12000lbs - 2.5 m/min (300 Amps)
